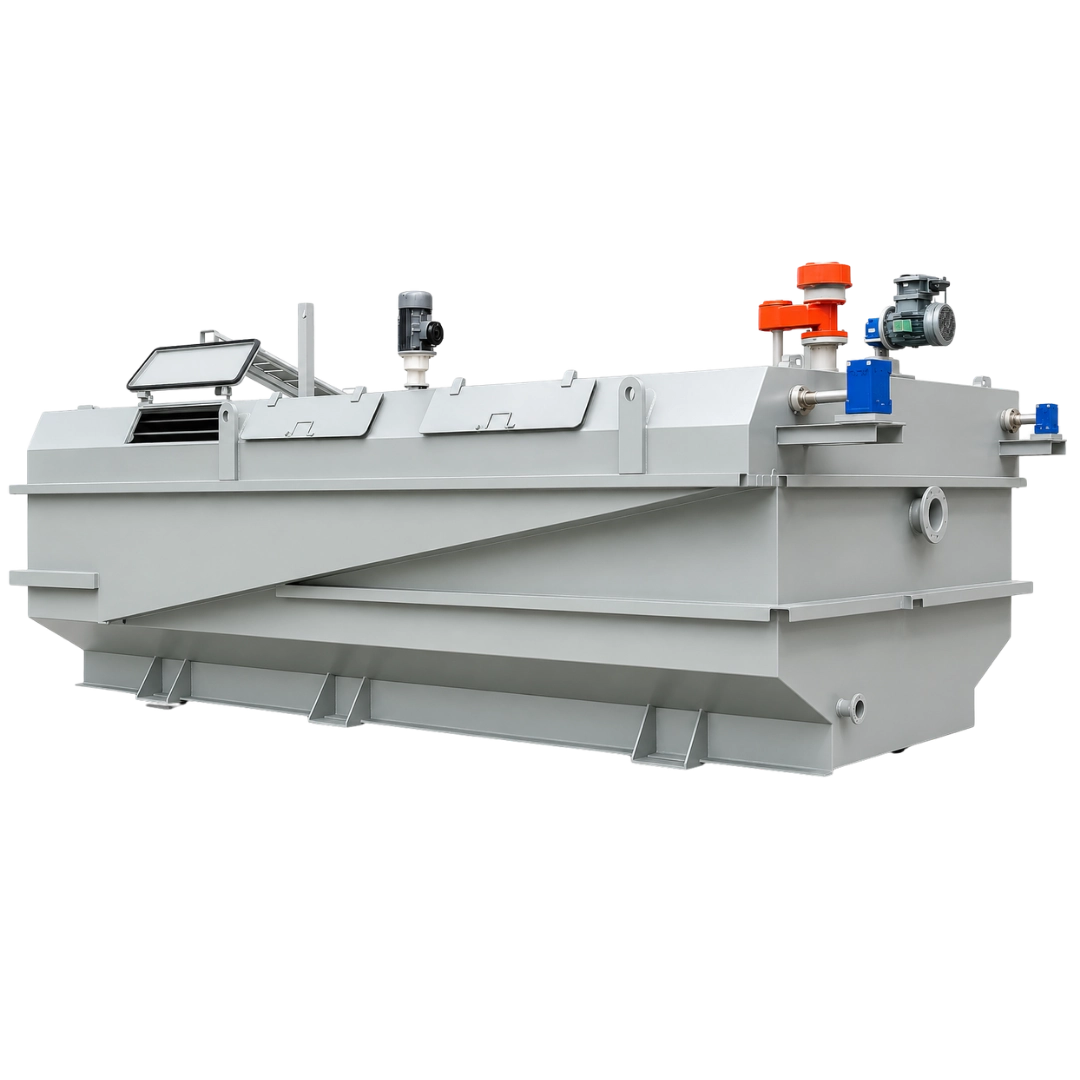

Produced waterInduced Gas Flotation (IGF)
Flotation & ClarificationView Details
Flotation & Clarification

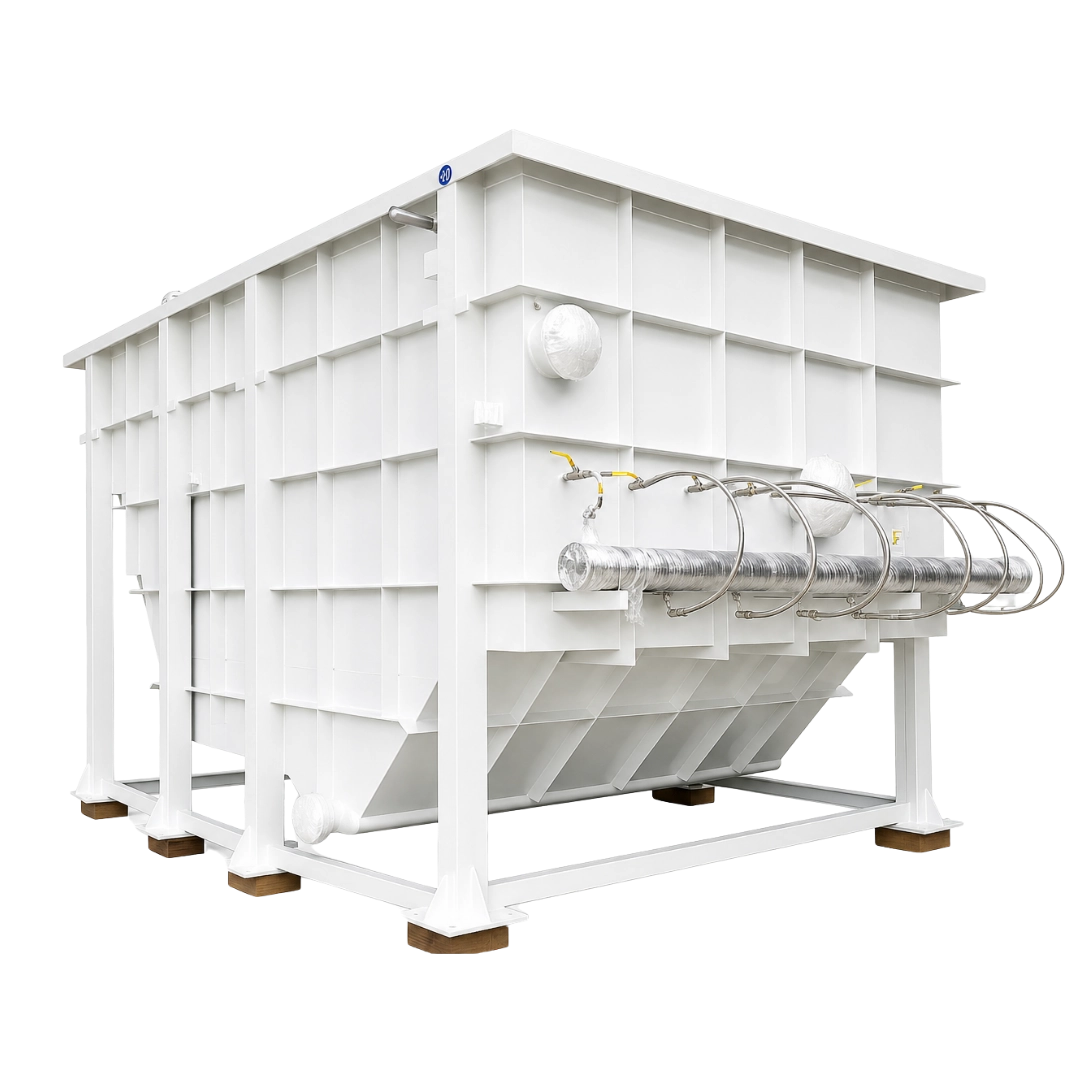

Dissolved Air Flotation (DAF)
Micro-bubble flotation that lifts oils, grease and suspended solids to the surface for easy removal — available as compact PWF and high-capacity PWL series from 5 to 500 m³/hr.
What it is
Heetu K-Pack Dissolved Air Flotation (DAF) systems dissolve air into a recycled water stream under pressure, then release it as a cloud of microscopic bubbles. Those bubbles attach to chemically conditioned oil and solids, floating them to the surface where an automatic skimmer removes the sludge.
Offered in compact PWF and high-capacity PWL series with rectangular or circular tanks, our DAF units are workhorses for food, beverage, textile, paper and general industrial effluent — reliably reducing free and emulsified oils by 90–95%.
Key features
- Rectangular or circular tank configurations
- Automatic sludge skimming
- Micro-bubble air-saturation technology
- PWF (compact) and PWL (high-capacity) series
- Stainless steel or mild-steel construction
- Treatment capacity from 5 to 500 m³/hr
How it works
Chemical conditioning
Coagulant and flocculant are dosed to destabilise oils and bind fine solids into flocs.
Air saturation
A recycled stream is pressurised and saturated with air, then released into the flotation tank.
Micro-bubbles float contaminants
Microscopic bubbles attach to flocs and oil, carrying them to the surface.
Skim and clarify
Automatic skimmers collect the floated sludge while clarified water exits via weirs.
Where it is used
Applications
- Food and beverage processing
- Textile mills and tanneries
- Pulp and paper mills
- Slaughterhouses and meat processing
- Emulsified coolant and machining effluent
Industries served
Food & Beverage
Textile
Pulp & Paper
Manufacturing
Why it delivers
- Up to 90%+ oil and suspended-solids removal
- 90–95% reduction of free and emulsified oil
- Compact, high-rate clarification
- Automated operation with low labour
- Scales from small units to large plants
Engineering edge
- Fine bubble generation for high capture efficiency
- Integrated coagulation/flocculation options
- Compact high-rate design saves footprint
- Robust skimming for consistent sludge removal
Technical data
| Flow range | 5–500 m³/hr |
| Oil removal | up to 90% |
| TSS removal | up to 90% |
| Free/emulsified oil | 90–95% reduction |
| Series | PWF · PWL |
| Tank types | Rectangular · circular |
Specifications are indicative. Final design is engineered to your effluent and site conditions.
Why Heetu K-Pack
Engineered to your stream
Every unit is sized to your flow, load and discharge targets — never an off-the-shelf compromise.
Built in-house
Fabricated and QA-tested in our own workshop for controlled, documented quality.
Proven performance
Field-validated removal rates from pilot through full-scale operation.
Lifetime support
Commissioning, spares and responsive after-sales for the life of your plant.
Related solutions
You may also need
Produced water

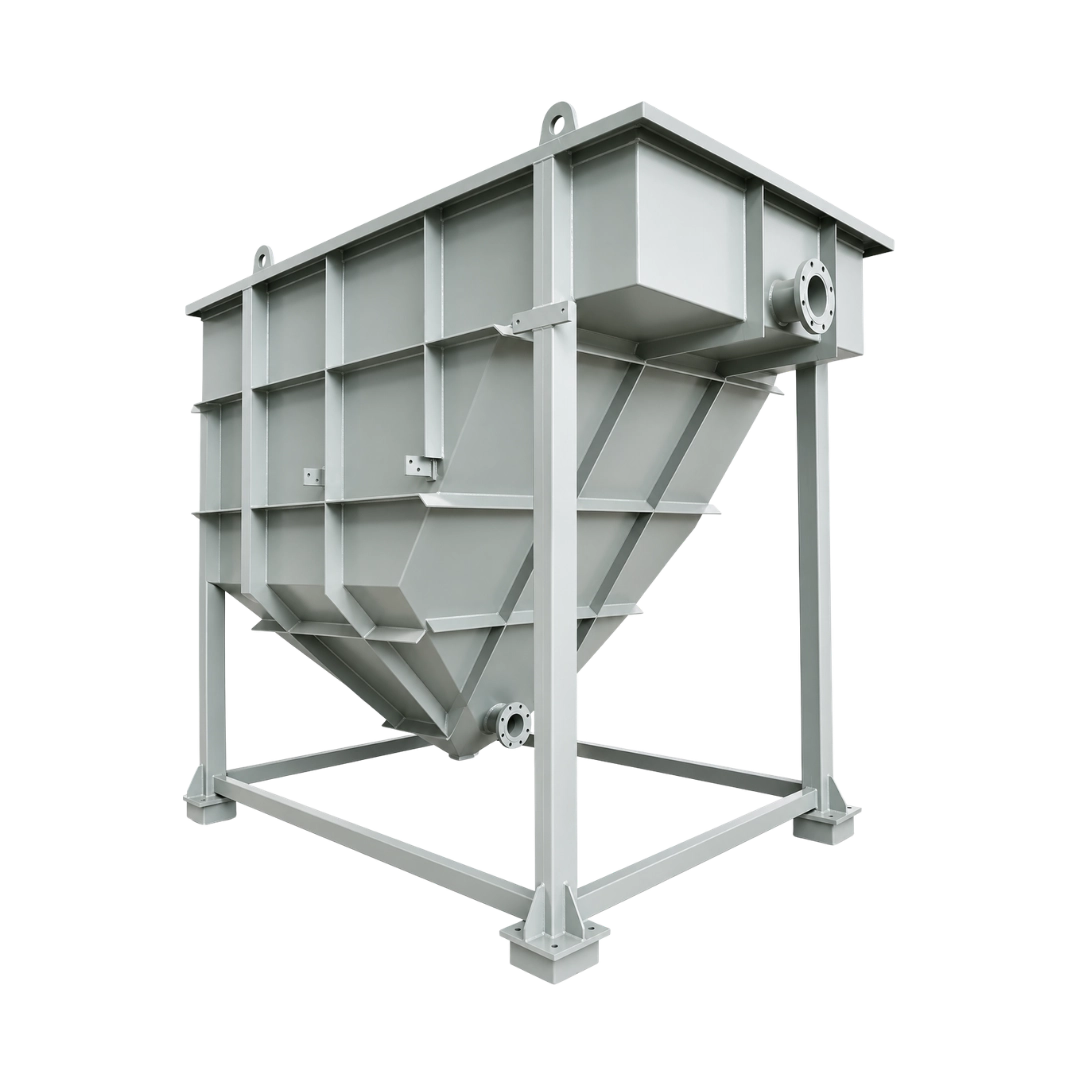

10× areaLamella Settlers / Clarifiers
Flotation & ClarificationView Details

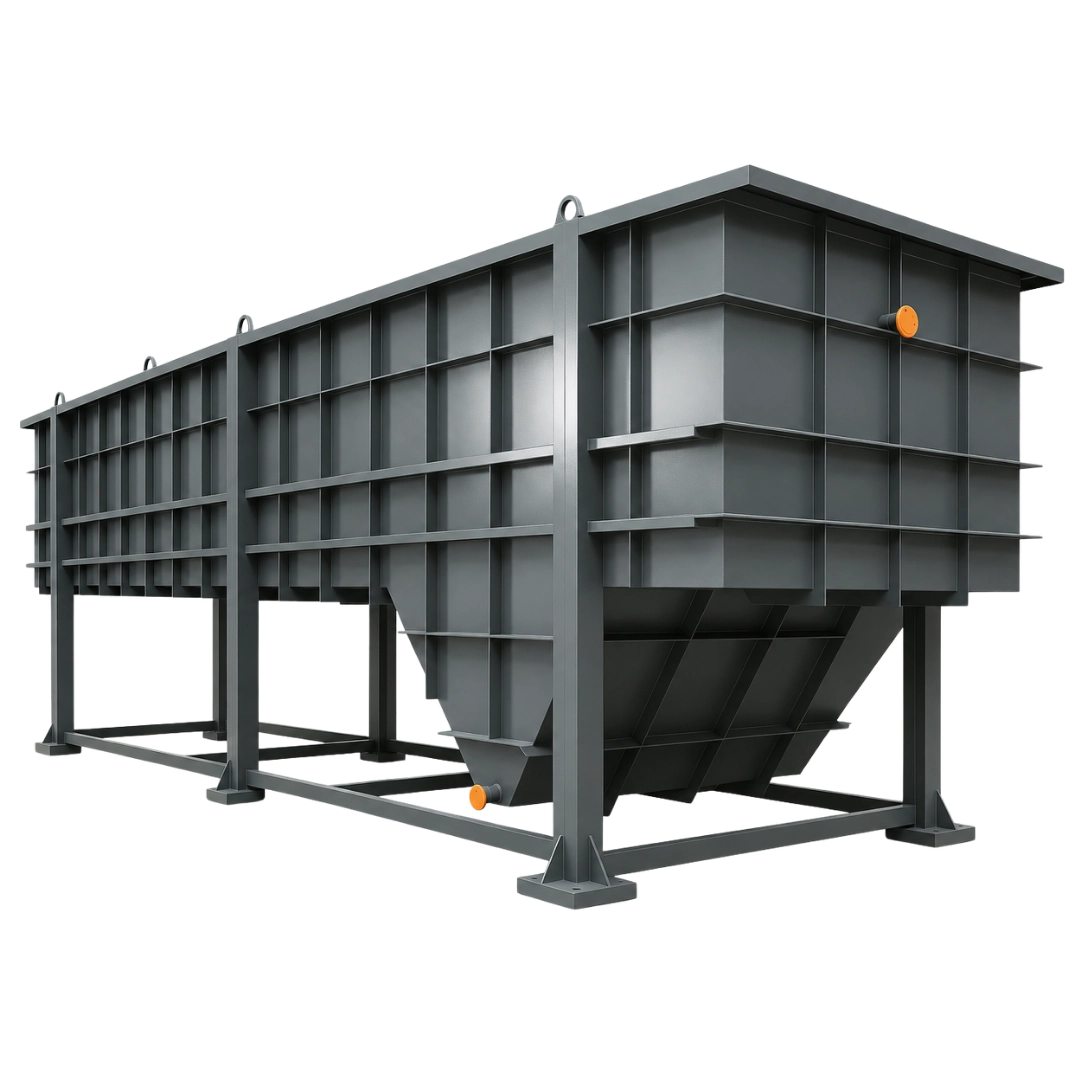

API 421API Oil–Water Separators
